A6000
Programmable AC Power Source
6KVA
Description
Accurate, Fast
Response and Easy to Measure

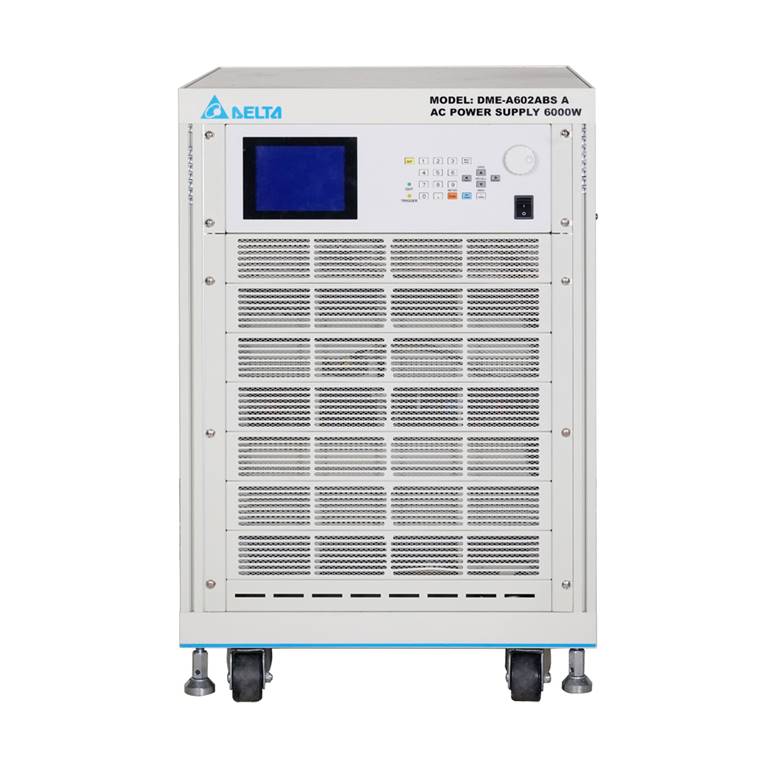

The A6000 programmable AC power
source is equipped with advanced DSP technology for accurate electronic
parameters such as Vrms, Irms, active power, VA, PF,
CFI, and more. It also has 30 sets of mainstream waveform synchronization built
in. Maximum 6000VA output power and programmable 30–1KHz output
frequency. Supports remote control via RS232 or GPIB
communication. From design and quality testing to manufacturing testing, the
A6000 can fulfill your needs.
Complete Waveform Simulation
Delta A6000's AC
power supply has 30 sets of mainstream waveforms and two sets of customized
waveforms to fulfill the needs of various applications such as specific
on-board charging, communication equipment, switching power, and more.

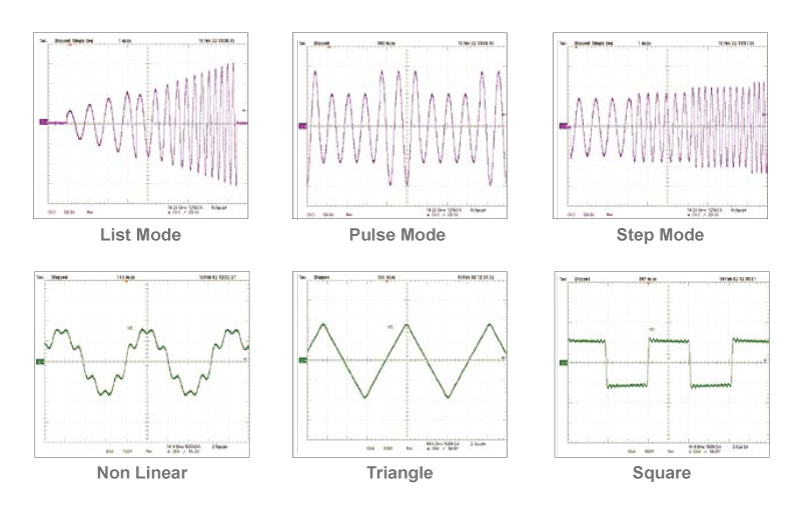

Supports programmable LIST, PULSE, and STEP via advanced DSP technology for
easy simulation of power disturbance testing.
Features
·
Programmable control voltage and current limits
·
Advanced DSP technology provides accurate electronic
parameters
·
High-peak output current for accurate inrush current
testing
·
30 sets of mainstream waveform synchronization built in
for simulating various power grids
·
Supports waveform distortion simulation
·
Comprehensive
circuit and fan protection
Specifications
